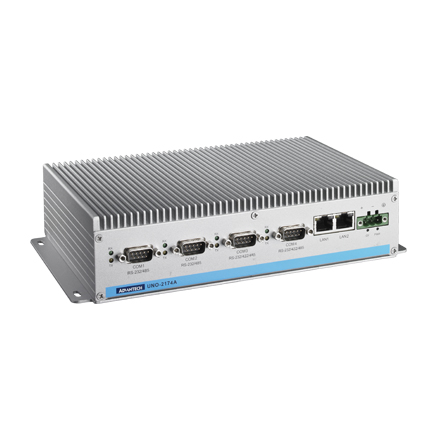

UNO-2174A
Main Features
- 板载Intel Atom N450 处理器
- 2个10/100/1000 Base-T RJ-45端口，6个USB 2.0端口
- 支持Windows® CE 6.0, WES 2009, WES 7 及Linux
- 板载系统状态LED指示灯
- 前置CF卡槽
- 支持LAN 功能启动
- 2个Mini PCIe 卡槽，1个SIM卡槽
- 无风扇与无软线连接设计
- 机箱与电源接地之间的隔离保护
- 支持宽温运行： - 10 ~ 70° C
- IP40 防护等级认证
- 支持Windows 7 32 & 64位
- 支持插卡(1 x PCI-104 and 1 x PC/104+)，可添加额外的扩展子板
- 支持任意波特率
 UNO-2174A和UNO-2178A是两款内含英特尔凌动处理器的无风扇嵌入式工业电脑。这两款产品分别采用低功耗凌动N450和D510 1.67GHz处理器，板载2GB DDR2 RAM，千兆以太网端口，丰富的I/O，2个Mini PCIe槽，可灵活扩展Wi-Fi / 3G模块，兼容Windows 7。两款产品均具有能量之星认证，IP40防尘等级认证，-10 ~ 70° C宽温运行等特性。另支持PC/104+ 和PCI-104子板扩充插件、附加I/O模块和总线卡等。功耗更低、性能更加卓越。 UNO-2174A和UNO-2178A是严苛工业环境的理想而经济的选择，应用领域包括：工厂自动化、设备自动化、危险源监控、太阳能光伏、环境监测、楼宇节能等。
| |
UNO-2174A-A23E
|
|---|
| Environment |
Humidity |
95% @ 40° C (non-condensing) |
| Operating Temperature |
-10 ~ 70° C (14 ~ 158° F) |
| Storage Temperature |
- |
| General |
Dimensions (W x H x D) |
255 x 152 x 50 mm(10" x 6.0" x 2.0") |
| Enclosure |
Aluminum + SECC |
| Mounting |
Wallmount, DIN-rail, VESA |
| OS Support |
WES Windows XP Embedded, Windows XP, Windows 7, Windows CE 5.0 & 6.0, Linux, Moblin, QNX
Windows 2000/XP, WES7, WES-2009, CE 6.0, Linux, QNX |
| Power Consumption |
12 W |
| Power Requirement |
9 ~ 36 VDC (e.g +24 V @ 1.5 A) (Min. 36 W), ATX |
| Remote Management |
Built-in Advantech DiagAnywhere agent on Windows CE, WES2009, WES7 |
| System Design |
Fanless design with no internal cabling |
| I/O Interface |
LAN |
2 x 10/100Base-T RJ-45 ports (Built-in boot ROM in flash BIOS) |
| Serial Ports |
2 x RS-232/485 (COM1-2), 2 x RS-232/422/485 w/ 128kB FIFO |
| System Hardware |
Audio |
Line in, Line out, Mic in (5.1 channel HD audio) |
| CPU |
Intel Atom N450 1.67GHz |
| Display |
DB15 VGA connector, UNO-2174A supports |
| Indicators |
LEDs for Power, CF, LAN (Active, Status), Serial (Tx, Rx) |
| Keyboard/Mouse Ports |
1 x PS/2 |
| Watchdot Timer |
Programmable 256 levels timer interval, from 1 to 255 sec |
| Memory |
2 GB DDR2 SDRAM built-in |
| I/O Interface |
USB |
6 x USB 2.0 |
|
型号 |
产品描述 |
 |
| |
UNO-2174A-A23E |
Atom N450, 2G RAM w/ 2xLAN, 320G,4xCOM, 2x Mini-PCIe+工业电源
|
|
